Set up nbn® Wireless

Your modem will take care of the hard stuff like internet settings, but we’ll need your help to plug it in. The main cables you need will come in the box, and you can grab extra Ethernet cables from the shops if you need them.



Choose your modem to get started:

Picture Modem
Wi-Fi Max modem
 Wi-Fi Max Modem (HWG2025)
VX420-G2V Modem
 VX420-G2V Modem
Smart Modem Gateway
 Smart Modem Gateway (VX420-G2H)
VX220-G2V Modem
 VX220-G2V Modem
TP-Link VR1600v modem
 TP-Link VR1600v
TG-789 Broadband Gateway
 TG-789 Broadband Gateway
TG-1 Broadband Gateway
 iiNet modem not listed here?
See Guides for older modems.
BYO Modem
 Don't have an iiNet modem?
See our BYO modem guide.



How to plug in your Wi-Fi Max Modem for nbn Wireless

Set up with the My Internet Connect app

You can download the My Internet Connect App (Android / iOS). Don't want to use the app? You can set up without the app instead.



  1. Wait for a message from us asking you to plug in your nbn modem. We need to get your connection ready on our side first.
  2. Find your nbn Connection Box (NCB) – this will be connected to the wall socket for your nbn Wireless antenna. You may already have a modem plugged in from your last internet service. Unplug any old modem from the NCB and power outlet.
  3. Open the App and follow the prompts until you get to Check your modem status.

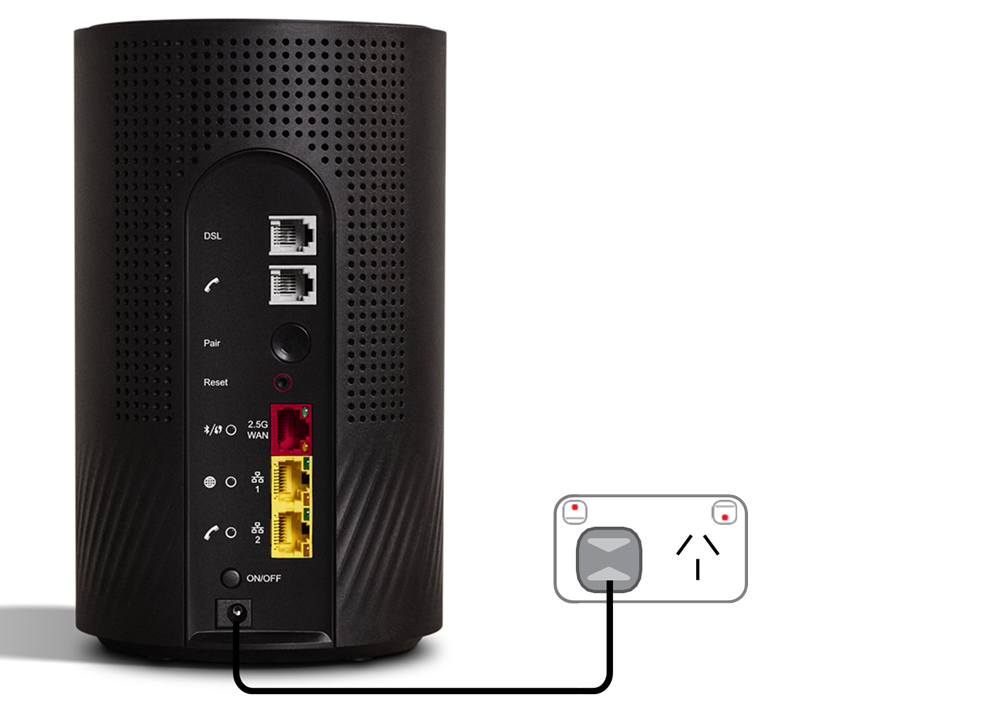

  4. Use the power cable to connect your modem's Power port to a power outlet, then press your modem’s ON/OFF button.
  5. Click Next to Connect to your modem’s Wi-Fi. You have 2 options:
    • Click Open Camera to scan the QR code on your modem's barcode sticker.
    • Click Enter Your Wi-Fi Password to follow the instructions to connect the Wi-Fi, then press Next.
  6. Follow these steps:
    • Use the Ethernet cable to connect your modem's red WAN port to your NCB's UNI-D1 port.

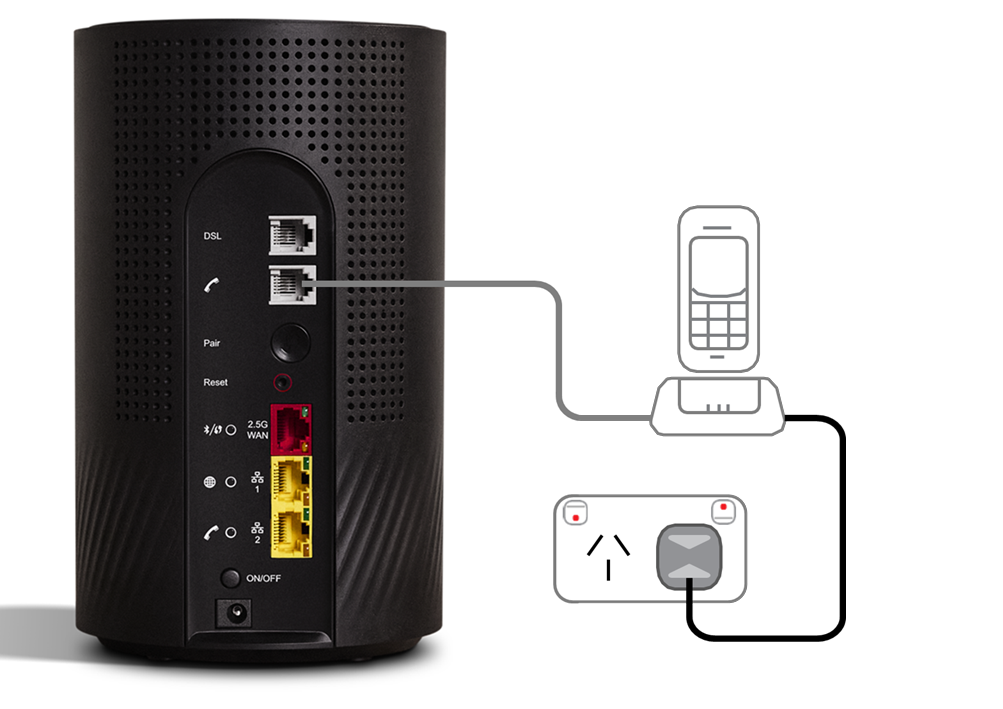

    • Got an nbn Phone service? Just plug a handset into your modem’s grey Phone port. If the phone LED on the back of the modem is solid green, then your phone line is active.
    • Take a break for 20 minutes while your modem runs through an automatic setup.
    • Wait for the light on the front of your modem to turn solid green.
    • Click Done to continue.

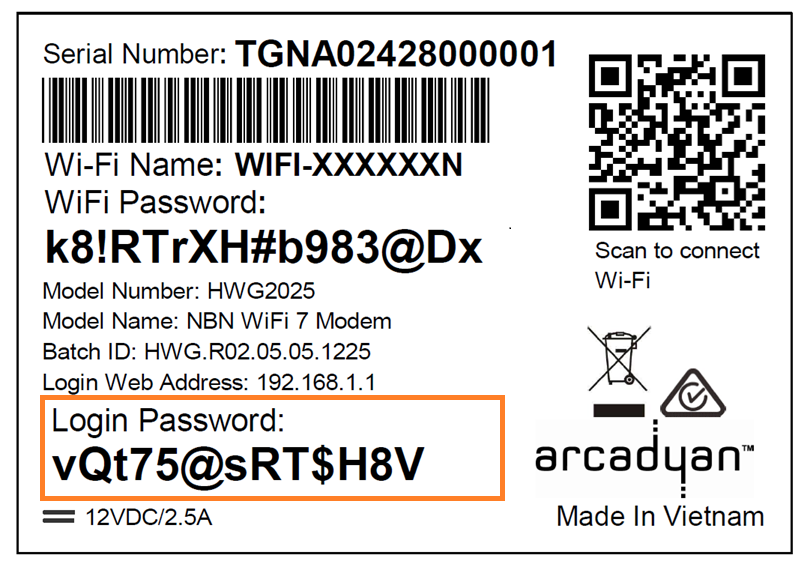

  7. You’ll be prompted to enter the Login Password found on on your modem's barcode sticker. Once entered, click Remember Password, then Login. You’ll be prompted to Change the Login Password, or Skip to continue.

    If you change the Login Password, make sure you save it somewhere secure so you can easily access it later.
    My Internet Connect app - WAN Setup
  8. Allocate a name for your modem or click Skip to continue.

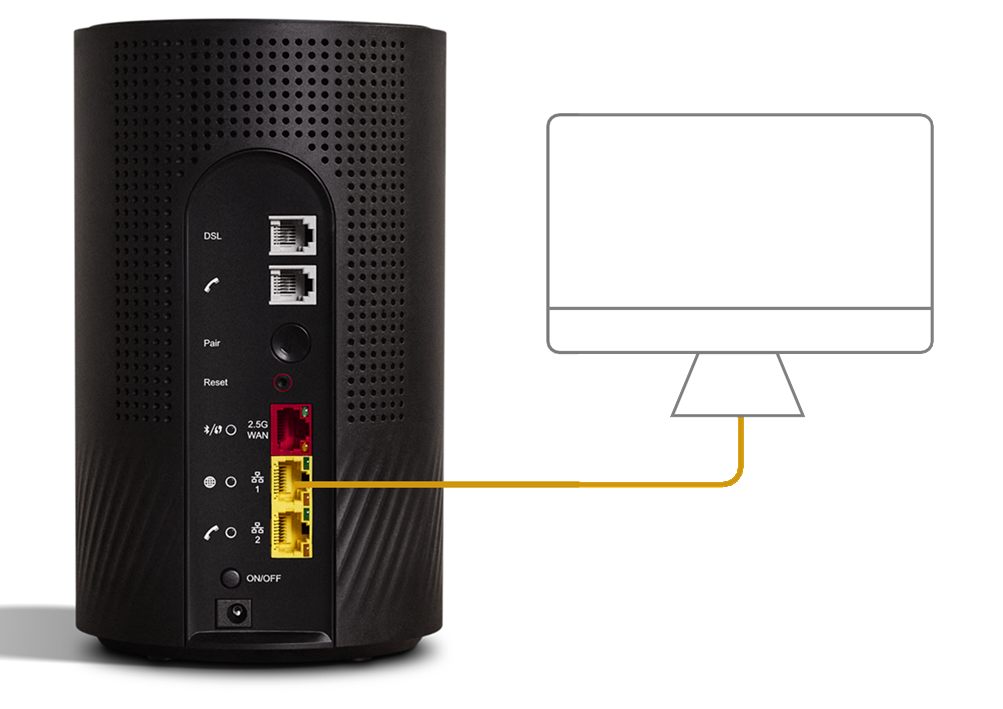

  9. Connect your devices. If you have extra Ethernet cables, you can connect 2 devices to your modem’s yellow LAN ports.

    If you want to connect your devices via Wi-Fi, you have 3 options:
    • Use the Wi-Fi Network name and Password on your modem's barcode sticker.
    • Scan the QR code on your modem's barcode sticker (Smartphones only).

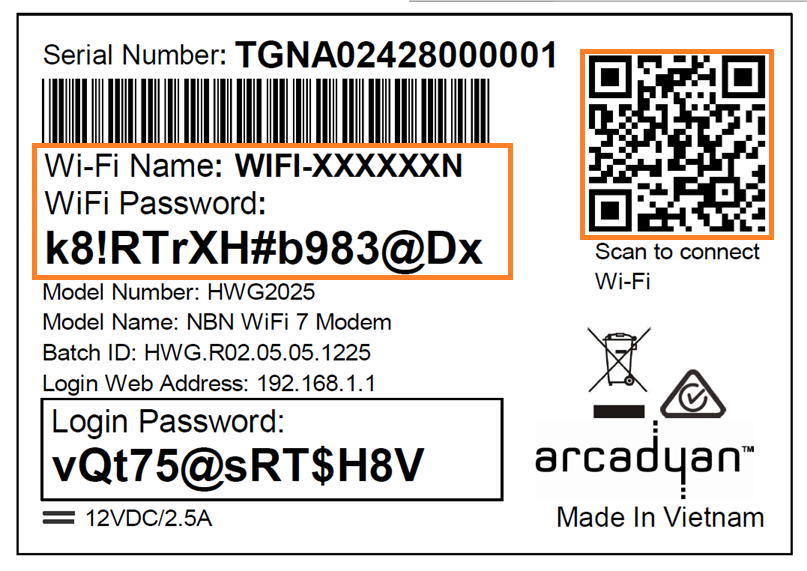

      Wi-Fi Max barcode sticker
    • Enable Wi-Fi Protected Setup (WPS) on your device then press the Pair button on the back of your modem for 3 seconds.
  10. Your devices will automatically connect to the best Wi-Fi possible. If your Wi-Fi’s running slow, check out Improving Wi-Fi Signal.

    If you want to change your Wi-Fi name or password, use this guide.
  11. You’re now good to go.

    If you don’t want to keep your old modem, see if your local council has any eWaste recycling facilities.



Set up without the My Internet Connect app

  1. Wait for a message from us asking you to plug in your nbn modem. We need to get your connection ready on our side first.
  2. Find your nbn Connection Box (NCB) – this will be connected to the wall socket for your nbn Wireless antenna. You may already have a modem plugged in from your last internet service. Unplug any old modem from the NCB and power outlet.
  3. Use the power cable to connect your modem's Power port to a power outlet, then press your modem’s ON/OFF button.
  4. Use the Ethernet cable to connect your modem's red WAN port to your NCB's UNI-D1 port.
  5. Got an nbn Phone service? Just plug a handset into your modem’s grey Phone port. If the phone LED on the back of the modem is solid green, then your phone line is active.

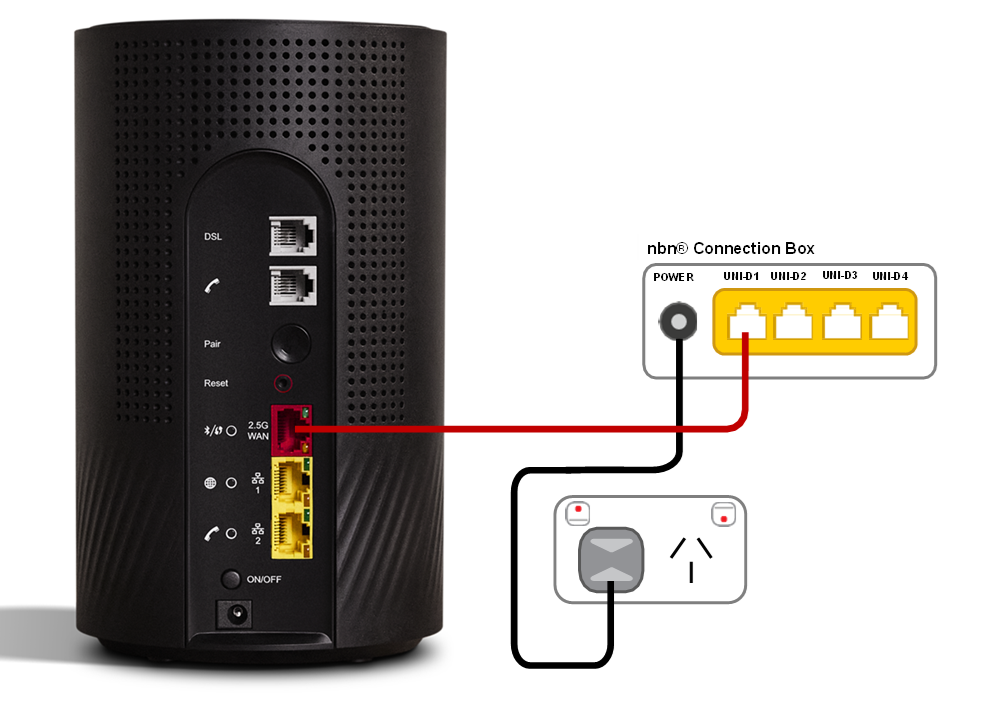

    Wi-Fi Max nbn Wireless plugin - from base to top, modem ports are Power, ON/OFF button, LAN 2, LAN 1, 2.5G WAN, Reset button, WPS Pair button, Phone, DSL.
  6. Take a break for 20 minutes while your modem runs through an automatic setup.
  7. Check the light on the front your modem. If it’s solid green, you're online and you can can start connecting your devices.

    No green light? Call us on 13 22 58 and we can help you out.
  8. Connect your devices. If you have extra Ethernet cables, you can connect 2 devices to your modem’s yellow LAN ports.

    If you want to connect your devices via Wi-Fi, you have 3 options:
    • Use the Wi-Fi Network name and Password on your modem's barcode sticker.
    • Scan the QR code on your modem's barcode sticker (Smartphones only).
      Wi-Fi Max barcode sticker
    • Enable Wi-Fi Protected Setup (WPS) on your device then press the Pair button on the back of your modem for 3 seconds.
  9. Your devices will automatically connect to the best Wi-Fi possible. If your Wi-Fi’s running slow, check out Improving Wi-Fi Signal.

    If you want to change your Wi-Fi name or password, use this guide.
  10. You’re now good to go.

    If you don’t want to keep your old modem, see if your local council has any eWaste recycling facilities.



How to plug in your VX420-G2V Modem for nbn Wireless



  1. Wait for a message from us asking you to plug in your nbn modem. We need to get your connection ready on our side first.
  2. Find your nbn Connection Box (NCB) – this will be connected to the wall socket for your nbn Wireless antenna. You may already have a modem plugged in from your last internet service. Unplug any old modem from the NCB and power outlet.
  3. Use the power cable to connect your modem's Power port to a power outlet, then press your modem’s ON/OFF button.
  4. Use the Ethernet cable to connect your modem's blue WAN port to your NCB's UNI-D1 port.
  5. Leave your modem alone for 15 minutes while it runs through its automatic setup.
  6. Check the Internet light on your modem. If it’s green, you’re online and you can start connecting your devices.

    No green light? Call us on 13 22 58 and we can help you out.
    VX420-G2V lights - from left to right: Power, DSL, Internet, 2.4GHz, 5GHz, WAN, LAN1, LAN2, LAN3, LAN4, Phone, WPS, USB.
  7. You'll find the default Wi-Fi name (SSID) and Wireless Password/PIN on your modem's barcode sticker. If you want to change your Wi-Fi name or password, use this guide.
    VX420-G2V barcode sticker
  8. Your devices will automatically connect to the best Wi-Fi possible. If your Wi-Fi’s running slow, check out Improving Wi-Fi Signal.
  9. For online gaming or HD/4K streaming, Ethernet is better than Wi-Fi. If you have extra Ethernet cables, you can connect up to 4 devices to your modem’s yellow LAN ports.
  10. To use your iiNet nbn Phone service, just plug a handset into your modem’s green Phone port.
    VX420-G2V nbn Wireless plugin - from left to right, VX420-G2V ports are Phone, DSL, USB, LAN1, LAN2, LAN3, LAN4, WAN, Reset button, ON/OFF button, Power.
  11. You’re now good to go.

    If you don’t want to keep your old modem, see if your local council has any eWaste recycling facilities.



How to plug in your Smart Modem Gateway (VX420-G2H) for nbn Wireless

  1. Wait for a message from us asking you to plug in your nbn modem. We need to get your connection ready on our side first.
  2. Find your nbn Connection Box (NCB) – this will be connected to the wall socket for your nbn Wireless antenna. You may already have a modem plugged in from your last internet service. Unplug any old modem from the NCB and power outlet.
  3. Use the power cable to connect your modem's Power port to a power outlet, then press your modem’s ON/OFF button.
  4. Use the Ethernet cable to connect your modem's blue WAN port to your NCB's UNI-D1 port.
  5. Leave your modem alone for 15 minutes while it runs through its automatic setup.
  6. Check the Internet light on your modem. If it’s green, you’re online and you can start connecting your devices.

    No green light? Call us on 13 22 58 and we can help you out.
    Smart Modem Gateway lights - from left to right: Power, DSL, 4G, Internet, 2.4GHz, 5GHz, WAN, LAN1, LAN2, LAN3, LAN4, Phone, WPS, USB.
  7. You'll find the default Wi-Fi name (SSID) and Wireless Password/PIN on your modem's barcode sticker. If you want to change your Wi-Fi name or password, use this guide.
    Smart Modem Gateway barcode sticker
  8. Your devices will automatically connect to the best Wi-Fi possible. If your Wi-Fi’s running slow, check out Improving Wi-Fi Signal.
  9. For online gaming or HD/4K streaming, Ethernet is better than Wi-Fi. If you have extra Ethernet cables, you can connect up to 4 devices to your modem’s yellow LAN ports.
  10. To use your iiNet nbn Phone service, just plug a handset into your modem’s green Phone port.
    Smart Modem Gateway nbn Wireless plugin - from left to right, modem ports are Phone, DSL, USB, LAN1, LAN2, LAN3, LAN4, WAN, Reset button above ON/OFF button, Power.
  11. You're now good to go.

    If you don’t want to keep your old modem, see if your local council has any eWaste recycling facilities.



How to plug in your VX220-G2V Modem for nbn Wireless



  1. Wait for a message from us asking you to plug in your nbn modem. We need to get your connection ready on our side first.
  2. Find your nbn Connection Box (NCB) – this will be connected to the wall socket for your nbn Wireless antenna. You may already have a modem plugged in from your last internet service. Unplug any old modem from the NCB and power outlet.
  3. Use the power cable to connect your modem's Power port to a power outlet, then press your modem’s ON/OFF button.
  4. Use the Ethernet cable to connect your modem's blue WAN port to your NCB's UNI-D1 port.
  5. Leave your modem alone for 15 minutes while it runs through its automatic setup.
  6. Check the Internet light on your modem. If it’s blue, you’re online and you can start connecting your devices.

    No blue light? Call us on 13 22 58 and we can help you out.
    VX220-G2V lights - from left to right: Power, DSL, Internet, 2.4GHz, 5GHz, WPS, WAN, LAN1, LAN2, LAN3, LAN4, Phone, USB.
  7. You'll find the default Wi-Fi name (SSID) and Password on your modem's barcode sticker. If you want to change your Wi-Fi name or password, use this guide.
    VX220-G2V Modem barcode sticker
  8. Your devices will automatically connect to the best Wi-Fi possible. If your Wi-Fi’s running slow, check out Improving Wi-Fi Signal.
  9. For online gaming or HD/4K streaming, Ethernet is better than Wi-Fi. If you have extra Ethernet cables, you can connect up to 4 devices to your modem’s yellow LAN ports.
  10. To use your iiNet nbn Phone service, just plug a handset into your modem’s green Phone port.
    VX220-G2V nbn Wireless plugin - from left to right, modem ports are Phone, DSL, USB, LAN1, LAN2, LAN3, LAN4, WAN, Power. The right side of the modem has an ON/OFF button and Reset button.
  11. You’re now good to go.

    If you don’t want to keep your old modem, see if your local council has any eWaste recycling facilities.



How to plug in your TP-Link VR1600v for nbn Wireless



  1. Wait for a message from us asking you to plug in your nbn modem. We need to get your connection ready on our side first.
  2. Find your nbn Connection Box (NCB) – this will be connected to the wall socket for your nbn Wireless antenna. You may already have a modem plugged in from your last internet service. Unplug any old modem from the NCB and power outlet.
  3. Use the power cable to connect your modem's Power port to a power outlet, then press your modem’s ON/OFF button.
  4. Use the Ethernet cable to connect your modem's blue WAN port to your NCB's UNI-D1 port.
  5. Leave your modem alone for 15 minutes while it runs through its automatic setup.
  6. Check the Internet light on your modem. If it’s green, you’re online and you can start connecting your devices.

    No green light? Call us on 13 22 58 and we can help you out.
    VR1600V lights - from left to right: Power, DSL, Internet, 2.4G, 5G, WPS, Phone1, Phone2, WAN, LAN1, LAN2, LAN3, LAN4, USB.
  7. You'll find the default Wi-Fi name (SSID) and Wireless Password/PIN on your modem's barcode sticker. If you want to change your Wi-Fi name or password, use this guide.
    VR1600v barcode sticker
  8. We recommend connecting over the 5GHz Wi-Fi channel for faster performance. If your Wi-Fi’s running slow, check out Improving Wi-Fi Signal.
  9. For online gaming or HD/4K streaming, Ethernet is better than Wi-Fi. If you have extra Ethernet cables, you can connect up to 4 devices to your modem’s yellow LAN ports.
  10. To use your iiNet nbn Phone service, just plug a handset into your modem’s grey Phone 1 port.
    VR1600v Modem nbn Wireless plugin - from left to right, modem ports are DSL, USB, LAN1, LAN2, LAN3, LAN4, WAN, Phone 2, Phone 1, Power, Reset button above Power button.
  11. You’re now good to go.

    If you don’t want to keep your old modem, see if your local council has any eWaste recycling facilities.

​

TG-789 Broadband Gateway

  1. Wait for a message from us asking you to plug in your nbn modem. We need to get your connection ready on our side first.
  2. Find your nbn Connection Box (NCB) – this will be connected to the wall socket for your nbn Wireless antenna. You may already have a modem plugged in from your last internet service. Unplug any old modem from the NCB and power outlet.
  3. Use the power cable to connect your modem's Power port to a power outlet, then press your modem’s ON/OFF button.
  4. Use the Ethernet cable to connect your modem's red WAN port to your NCB's UNI-D1 port.
  5. Leave your modem alone for 15 minutes while it runs through its automatic setup.
  6. Check the Internet light on your modem. If it’s green, you’re online and you can start connecting your devices.

    No green light? Call us on 13 22 58 and we can help you out.
    TG-789 modem lights, from left to right: Status, WAN, Internet, Wireless 2.4, Wireless , WPS, Ethernet, USB, phone, Wireless On/Off button.
  7. You'll find the default Wi-Fi Network name and password (Wireless Key) on your modem's barcode sticker. If you want to change your Wi-Fi name or password, use this guide.
    TG-789 barcode sticker example - WiFi details
  8. We recommend connecting over the 5GHz Wi-Fi channel for faster performance. If your Wi-Fi’s running slow, check out Improving Wi-Fi Signal.
  9. For online gaming or HD/4K streaming, Ethernet is better than Wi-Fi. If you have extra Ethernet cables, you can connect up to 4 devices to your modem’s yellow LAN ports.
  10. To use your iiNet nbn Phone service, just plug a handset into your modem’s green Phone 1 port.
    TG-789 nbn Wireless plugin - from left to right, modem ports are Phone1, Phone 2, DSL, LAN1, LAN2, LAN3, LAN4, WAN, Power, Power button, Reset button.
  11. You’re now good to go.

    If you don’t want to keep your old modem, see if your local council has any eWaste recycling facilities.
