Set up 5G Home Broadband

Your modem will take care of the hard stuff like internet settings, but we’ll need your help to plug it in. The main cables you need will come in the box, and you can grab extra Ethernet cables from the shops if you need them.

Note: Your iiNet 5G SIM is already inside your 5G Modem. Please don't remove it because the SIM won't work in other devices.



Choose your modem to get started:

Picture Modem
Wi-Fi Max 5G Modem
 Wi-Fi Max 5G Modem
Nokia Fastmile 3.2 Modem
 Nokia FastMile 3.2 5G Modem
Sagemcom 5866 Modem
 Sagemcom 5866 5G Modem



Wi-Fi Max 5G Modem



  1. Find a good spot for your modem
    • It's best to choose a clear, open location on a shelf or table - ideally near a window.
    • Don't put your modem on the floor or inside a cupboard because this will cause a weak signal.
    • You can try different spots if your first spot isn’t giving you a strong signal.
      Wi-Fi modem placement comparison - the modem on a clear top shelf has a good signal, and the modem on a crowded lower shelf has a poor signal
  2. Power on your modem
    • Use the power cable to plug your modem's Power port into a power outlet.
    • Press the ON/OFF button.

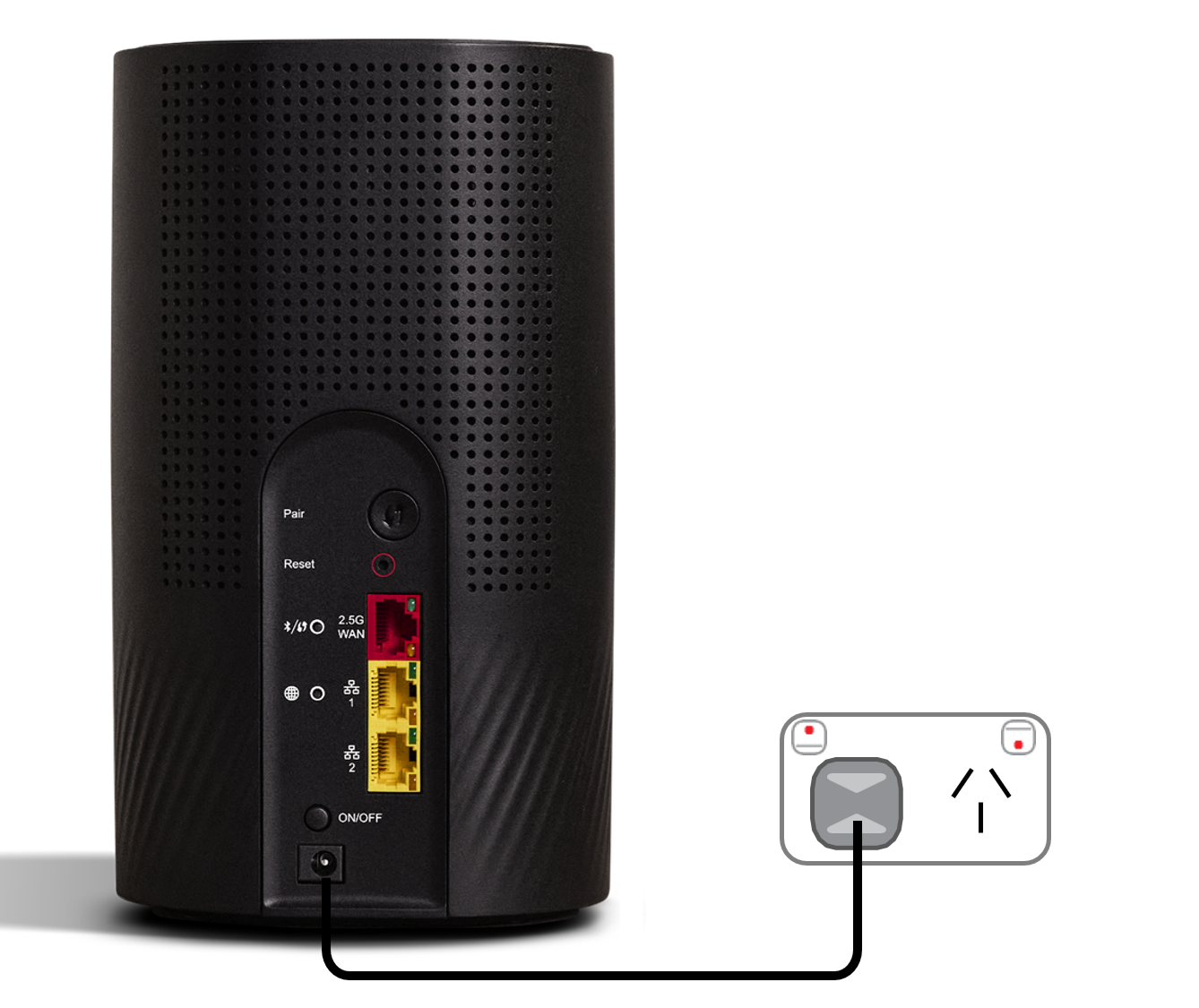

      Diagram showing Wi-Fi Max 5G Modem's power cable connected to a power outlet. From base to top, ports are power port, on/off button, LAN 2, LAN 1, 2.5G WAN, reset button and WPS Pair button.
  3. Check your 5G signal
    • Check the light on the front of your modem. If it's blue, you’re online with the 5G network and you can start connecting your devices.
    • If the light on the front of your modem is solid orange, then you're online with the 4G network. Your modem may connect to 4G if it provides a better signal than 5G. Try moving your modem to a different spot.
    • If the light on the front of your modem is red, then your modem can’t get a signal on either 5G or 4G. Try moving your modem to a different spot.
    • Can’t get a blue light? Give us a call on 13 22 58 and we'll help you out.

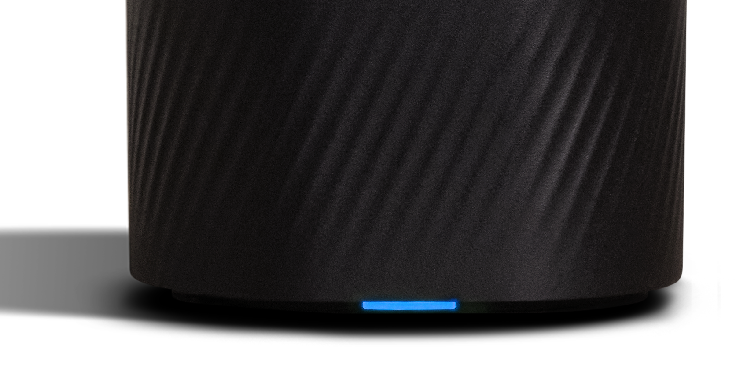

      Photo of blue light at the base of the Wi-Fi Max 5G modem
  4. Connect devices via Ethernet
    • For online gaming and HD/4K streaming, Ethernet is better than Wi-Fi. Use Ethernet for desktop PCs, gaming consoles or TVs if you can.
    • You can use additional Ethernet cables to connect up to 2 devices to the yellow LAN ports.
    • Need more devices connected by Ethernet? You can plug a network switch or hub into one of the LAN ports.
    • You can connect more devices over Wi-Fi.

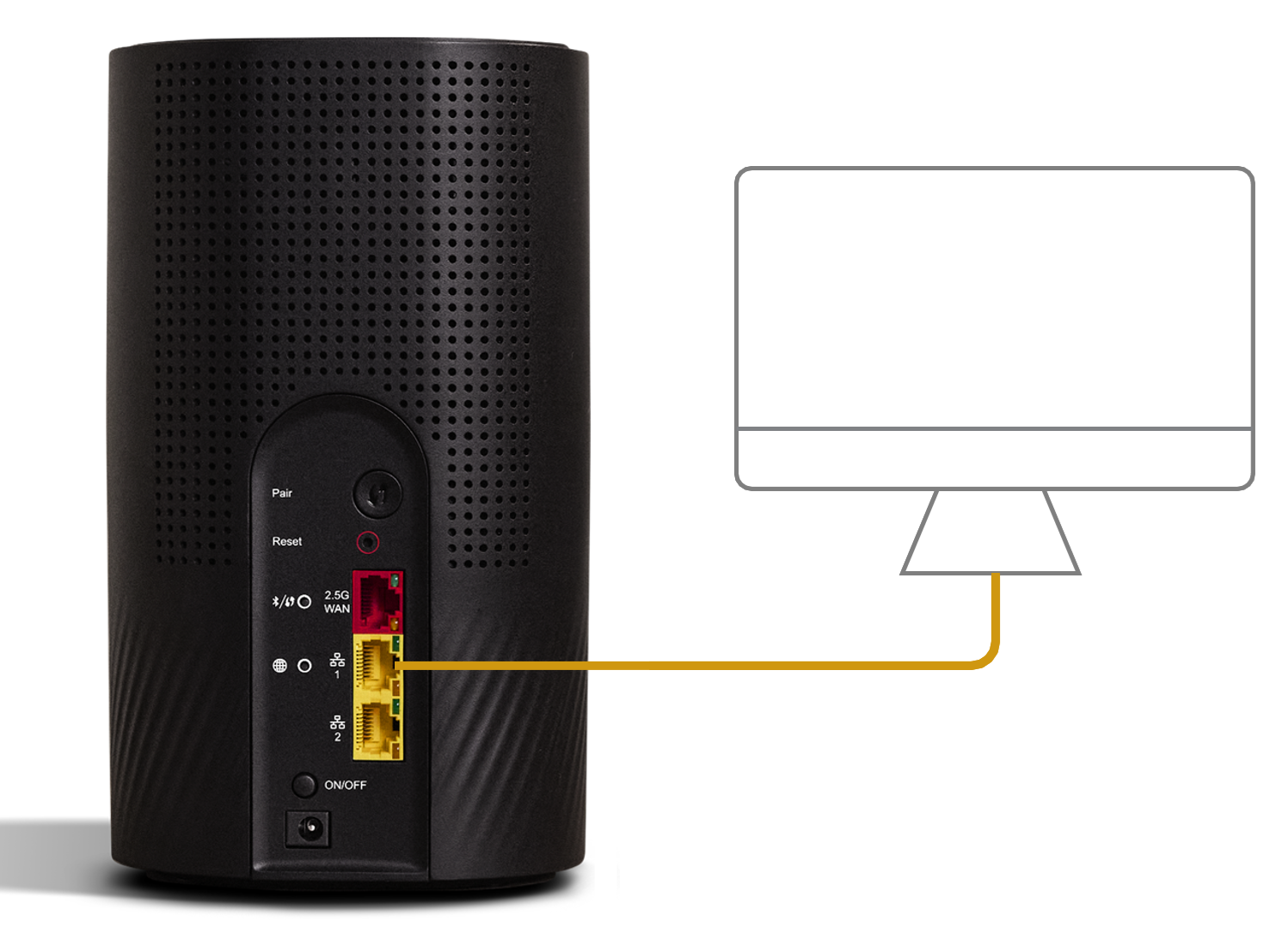

      Diagram showing a PC connected to a Wi-Fi Max 5G modem with a yellow Ethernet cable
  5. Connect your Wi-Fi Devices
    • Check the barcode sticker on the base of your modem. The default name of your Wi-Fi network is printed next to Wi-Fi Name.
    • Select your Wi-Fi Name on your device, then enter the password printed below Wi-Fi Password.
    • If you’re using a smartphone, you can just scan the QR code on your modem’s barcode sticker.
    • Once connected, your devices will automatically use the best Wi-Fi in range, so you don’t need to manually switch between 2.4GHz and 5GHz networks.

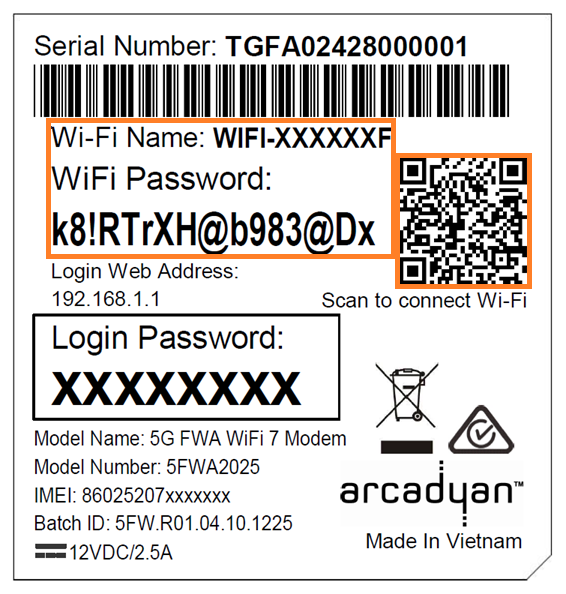

      Example of Wi-Fi Max 5G Modem barcode sticker. The Wi-Fi Name and Wi-Fi Password is printed below the barcode. The “Scan to connect to Wi-Fi” QR code is on the right-hand side
  6. Download the My Internet Connect app.
    It’s easy to manage your home network with the My Internet Connect app.
    • Make sure your device is connected to your modem’s Wi-Fi network.
    • Enter the Login Password on your modem’s barcode sticker.

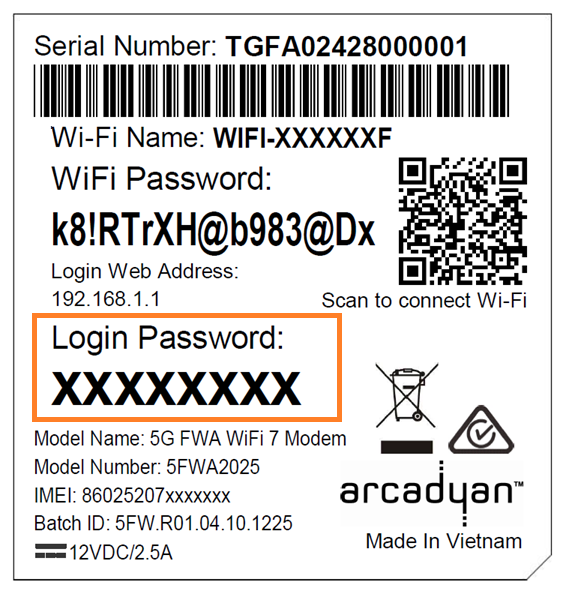

      Example of Wi-Fi Max 5G Modem barcode sticker with Login Password highlighted
  7. Need help? Call our team using these numbers:
    • 13 22 58 in Australia.
    • +61 8 9214 2222 from overseas.
    • National Relay Service for hearing impaired customers.



Nokia FastMile 3.2 Modem

Set up with the Nokia Wi-Fi App

This is available on Android and iOS.

Don't want to use the app? You can set up without the app instead.



  1. Download the Nokia Wi-Fi app (Android or iOS) on your phone and accept permission for “Nokia Wi-Fi” to find and connect to devices on your local network.

    Your phone needs to have Wi-Fi turned on to use the app to find your 5G Modem.
  2. In the Nokia Wi-Fi app, tap Get Started.
    Nokia WiFi App - Get Started
  3. Tap Scan code and use your phone's camera to scan the QR code on your 5G Modem's barcode sticker.
    Nokia WiFi App - Scan QR
  4. Follow the advice on how to find a good spot for your 5G Modem. It's best to choose a clear, open location on a shelf or table - ideally near a window.

    You can try different spots if your first spot isn’t giving you a strong signal. Don't put your modem on the floor or inside a cupboard because this will cause a weak signal.
    Nokia WiFi App - Position the modem
  5. You can skip the Insert SIM card screen - we've already done this for you.
  6. Use the power cable to plug your modem's Power port into a power outlet and press the ON/OFF button. Once your 5G Modem is turned on, tap Next in the Nokia Wi-Fi app.
  7. You'll find the default Wi-Fi name (SSID) and password (Wi-Fi Key) on your modem's barcode sticker. You can also connect phones by scanning the Wi-Fi QR code.

    If you want to change your Wi-Fi name or password, use this guide.
    Nokia FastMile 3.2 Barcode sticker
  8. Your devices will automatically connect to the best Wi-Fi possible. If your Wi-Fi’s running slow, check out Improving Wi-Fi Signal.

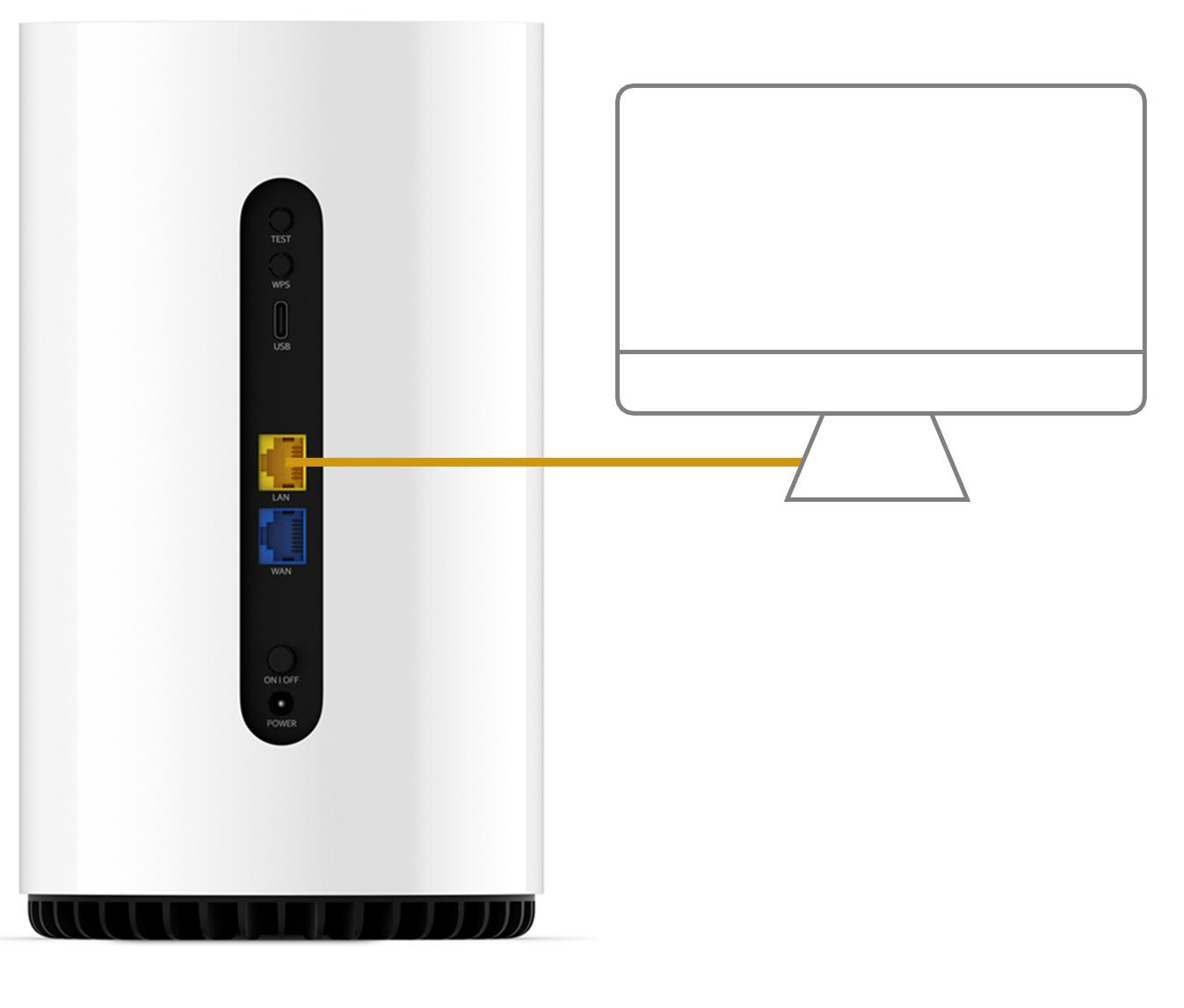

  9. For online gaming or HD/4K streaming, Ethernet is better than Wi-Fi. If you have extra Ethernet cables, you can connect up to 2 devices to your modem’s LAN ports
  10. Once your devices are connected, tap I'm Connected in the Nokia Wi-Fi app.
    Nokia WiFi App - I'm Connected
  11. The app will check your connection. If you'd like to try a different spot for your 5G Modem, tap Reposition gateway. Otherwise, tap Next.
    Nokia WiFi App - Connection Status
  12. Once you’re happy with the connection, tap Finish and you're good to go.



Set up manually

  1. Find a good spot for your 5G Modem. It's best to choose a clear, open location on a shelf or table - ideally near a window.

    You can try different spots if your first spot isn’t giving you a strong signal. Don't put your modem on the floor or inside a cupboard because this will cause a weak signal.
  2. Use the power cable to plug your modem's Power port into a power outlet and press the ON/OFF button.

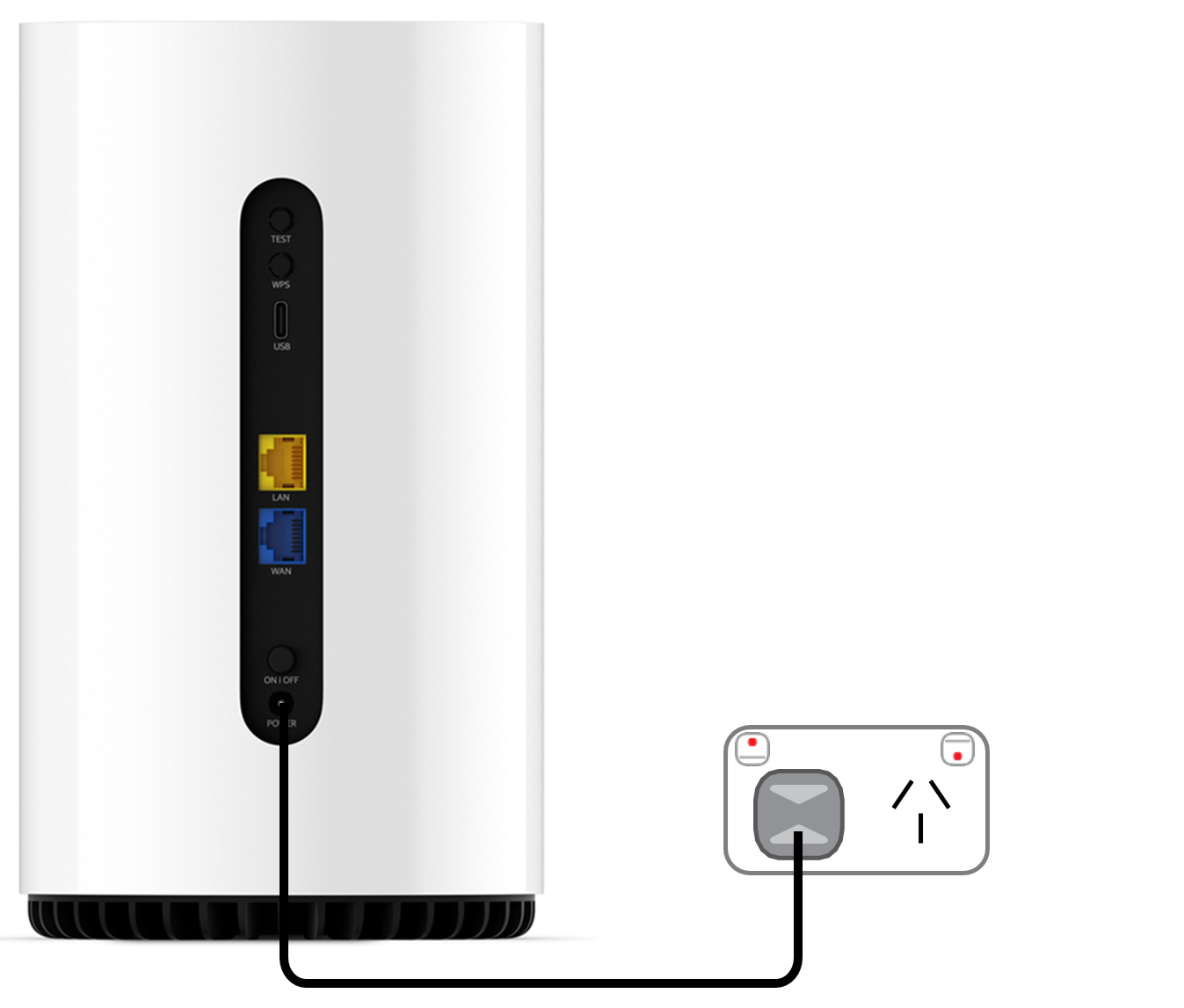

    Nokia FastMile 3.2 5G plugin - from top to bottom, modem ports are: Signal test button, WPS Pair button, USB, LAN, LAN/WAN, On/Off button, Power.
  3. Leave your modem alone for 2-3 minutes while it runs through its automatic setup.

  4. Check the Signal lights on your modem. If you have 2-3 bars, you’re online with a good signal and you can start connecting your devices.

  5. If the 5G light is off or you have low bars, try moving your modem to a different spot and press the TEST button on the back of your modem to run another signal test.

    No 5G light or can't get a good signal? Give us a call on 13 22 58 and we'll help you out.

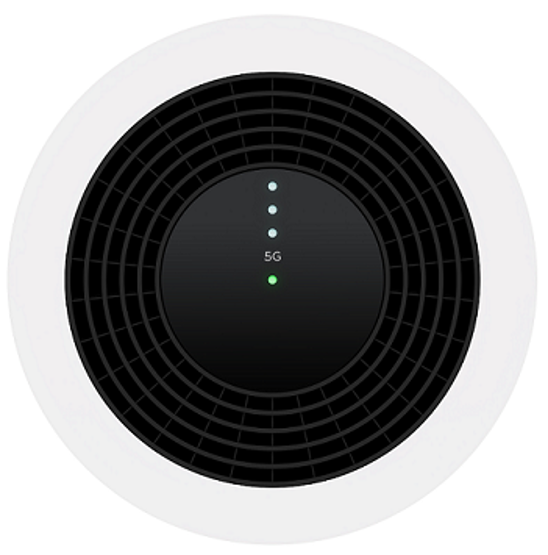

    Nokia FastMile lights - from centre outwards, Centre, 5G, then a row of 3 signal lights.
  6. You'll find the default Wi-Fi name (SSID) and password (Wi-Fi Key) on your modem's barcode sticker. You can also connect phones by scanning the Wi-Fi QR code.

    If you want to change your Wi-Fi name or password, use this guide.

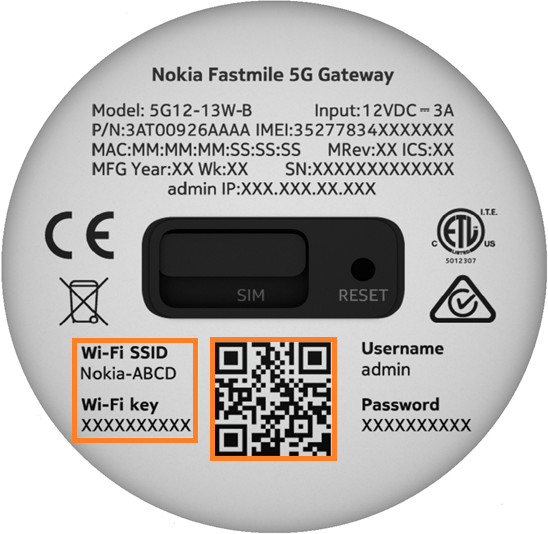

    Nokia FastMile 3.2 Barcode sticker
  7. Your devices will automatically connect to the best Wi-Fi possible. If your Wi-Fi’s running slow, check out Improving Wi-Fi Signal.
  8. For online gaming or HD/4K streaming, Ethernet is better than Wi-Fi. If you have extra Ethernet cables, you can connect up to 2 devices to your modem’s LAN ports.
  9. Once your devices are connected, you're good to go.



Sagemcomm 5866 5G Modem



  1. Find a good spot for your 5G Modem. It's best to choose a clear, open location on a shelf or table - ideally near a window.

    You can try different spots if your first spot isn’t giving you a strong signal. Don't put your modem on the floor or inside a cupboard because this will cause a weak signal.

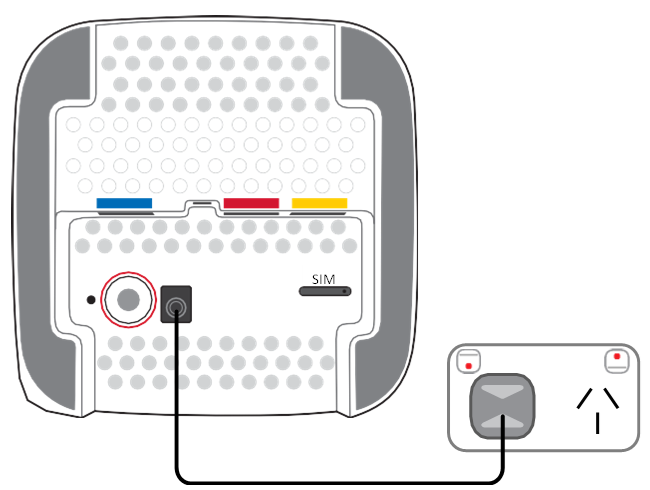

  2. Use the power cable to plug your modem's Power port into a power outlet and press the Power button on the base.
    Sagemcom 5G plugin - from left to right, modem ports are: 2.5G WAN, LAN/WAN, LAN. Then in the recess on the base of the modem: Reset button, Power button, DC port, SIM slot.

  3. Leave your modem alone for 3-5 minutes while it runs through its automatic setup.

  4. Check the Signal lights on your modem. If you have 3-4 bars, you’re online with a good signal and you can start connecting your devices.

  5. If the Signal lights are off or have low bars, try moving your modem to a different spot.

    Can't get a signal? Give us a call on 13 22 58 and we'll help you out.

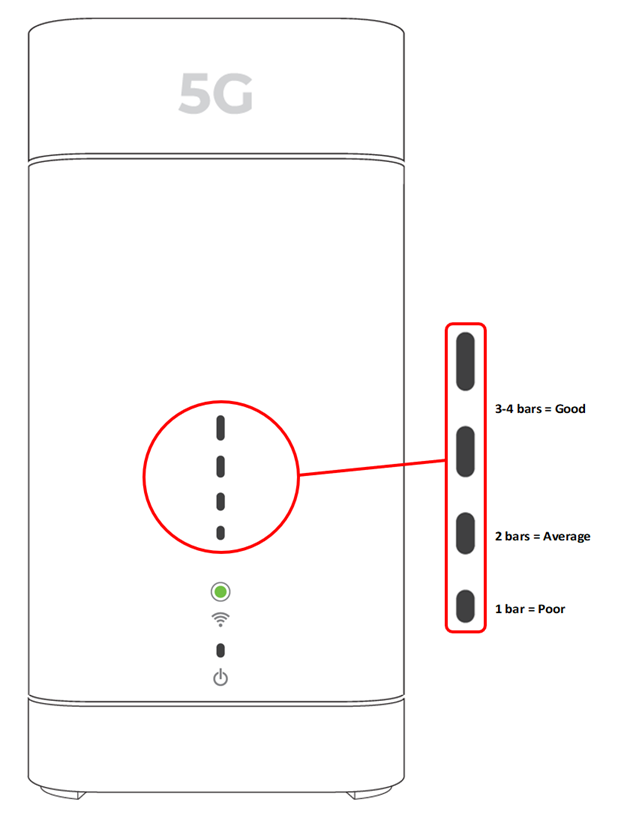

    Sagemcom modem lights - From base to top, Power, WiFi, and a column of 4 Signal lights
  6. There are 3 ways to connect your devices to the Wi-Fi:

    - A) Use the Wi-Fi Network name and Password on your modem's barcode sticker.
    - B) You can also connect phones by scanning the Wi-Fi QR code on your modem's barcode sticker.
    - C) Turn on Wi-Fi Protected Setup (WPS) on your device then press your modem's WPS button.

    If you want to change your Wi-Fi name or password, use this guide.

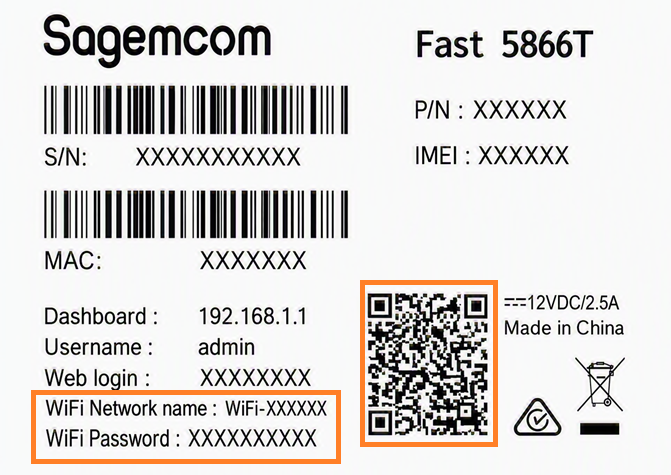

    Sagemcom Barcode sticker with WPS Pair button above
  7. Your devices will automatically connect to the best Wi-Fi possible. If your Wi-Fi’s running slow, check out Improving Wi-Fi Signal.

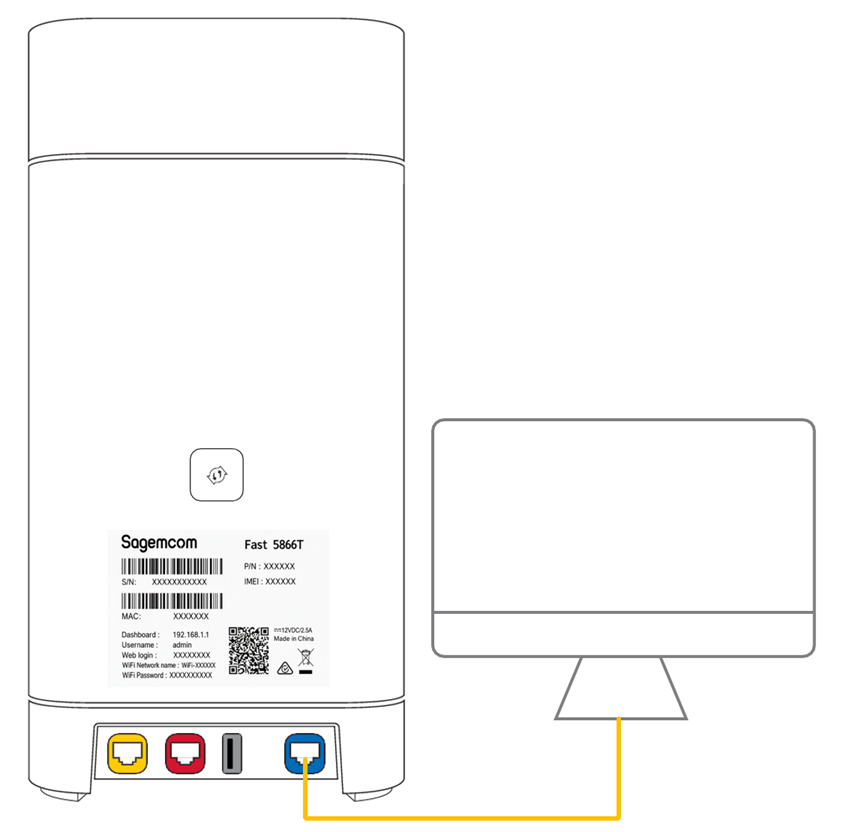

  8. For online gaming or HD/4K streaming, Ethernet is better than Wi-Fi. If you have extra Ethernet cables, you can connect up to 3 devices to your modem’s LAN ports.
  9. Once your devices are connected, you're good to go.
